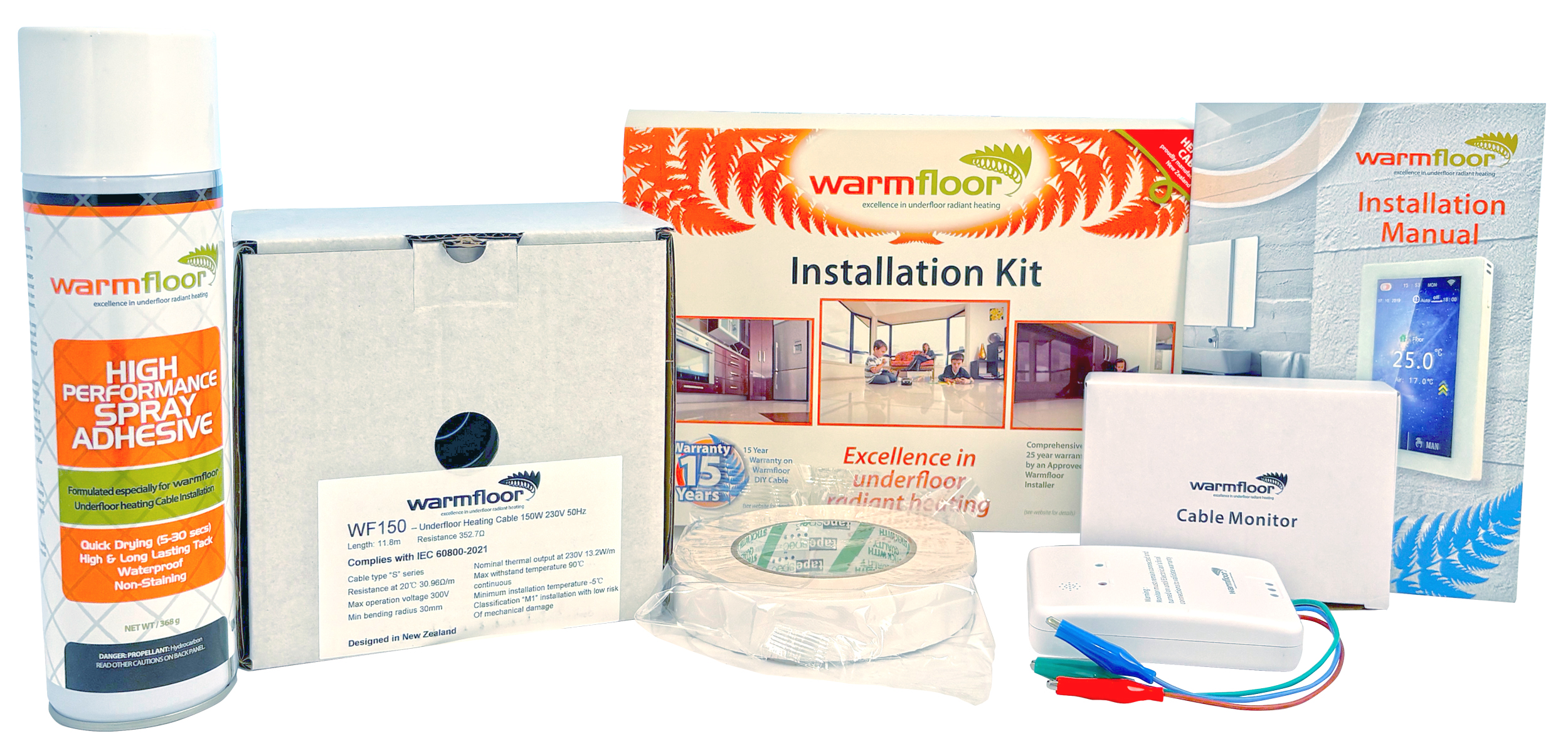

Selecting the correct kit is vital to ensuring the optimum efficiency of your underfloor heating. This page is designed to help you choose the correct kit for your installation. Our heating kits include:

• Heating cable (see sizes available in sidebar)
• Cable monitor
• Cloth tape
• Adhesive spray
• Comprehensive instruction manual

Please note: The thermostat is not included in the kit, choose the thermostat you require from our range and order as a separate item. Models include the TH02, TH04 and TH05 - see menu for more details on the thermostats.

Selecting the required kit

The first stage is to measure the floor area to be heated. You need to consider areas such as showers, vanities etc and avoid areas where permanent fixtures exist. Cables should not be installed closer than 200mm from walls and 100mm from toe spaces. You should also exclude these areas when calculating the total heating square meterage required.

Use the underfloor cable calculator on this site to input the heating square meterage required. The calculator results will give you the recommended kit required for your installation.

Warmfloor Cable Code	Length
WFK150	11.8
WFK200	15.4
WFK250	18.1
WFK300	22.6
WFK350	25.4
WFK400	30.2
WFK450	33.61
WFK500	36.8
WFK550	40.79
WFK600	43.1
WFK650	48.15
WFK700	53.5
WFK800	60.5
WFK900	68.0
WFK1000	72.0
WFE1250	92.5
WFK1500	115.5
WFK1750	133.0
WFK2000	147.0
WFK2500	184.6
WFK3000	227.0

For more information on room sizes, or cable options, please contact the Warmfloor team.
